AX80 Aluminum Profile Simracing Rig

PRODUCT DESCRIPTION

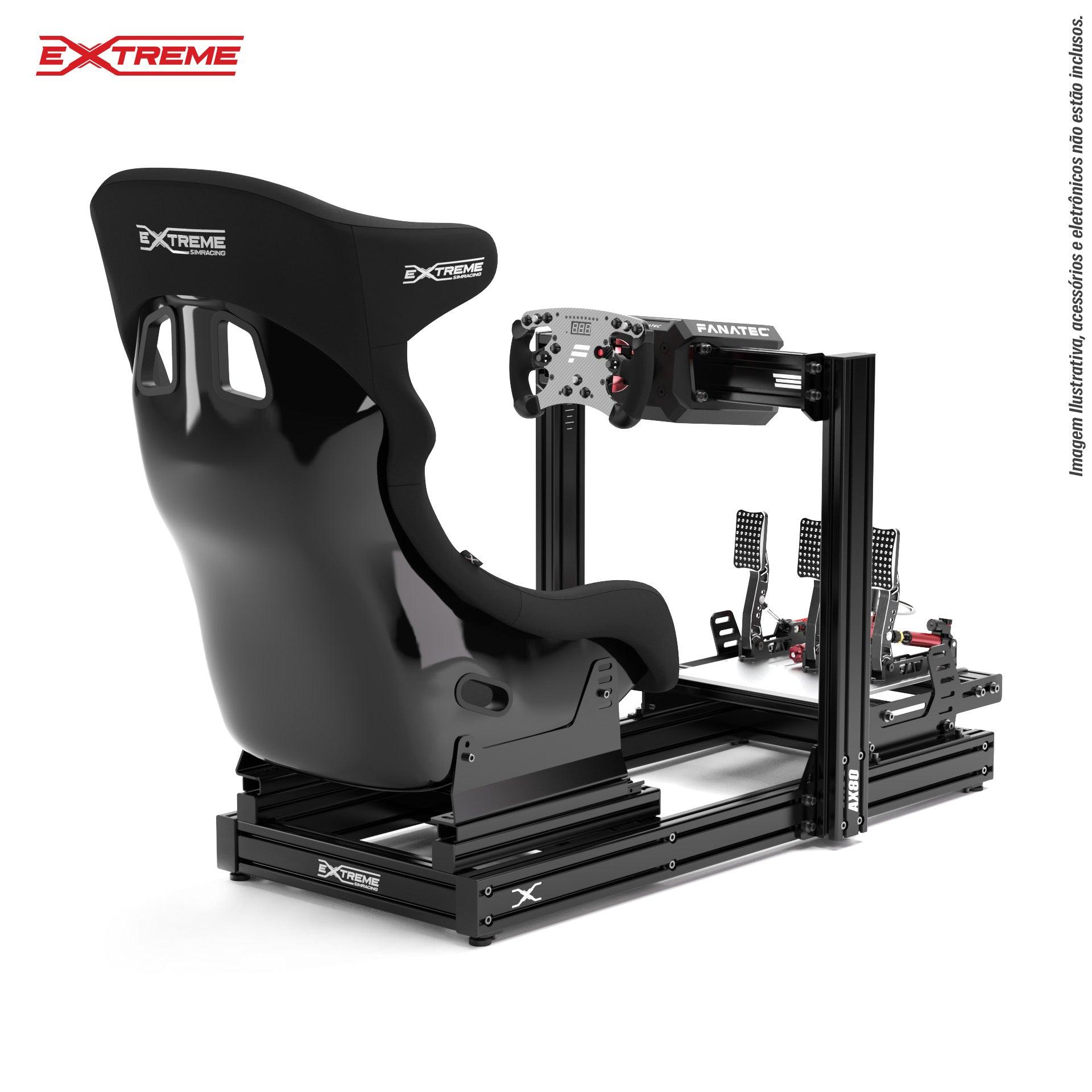

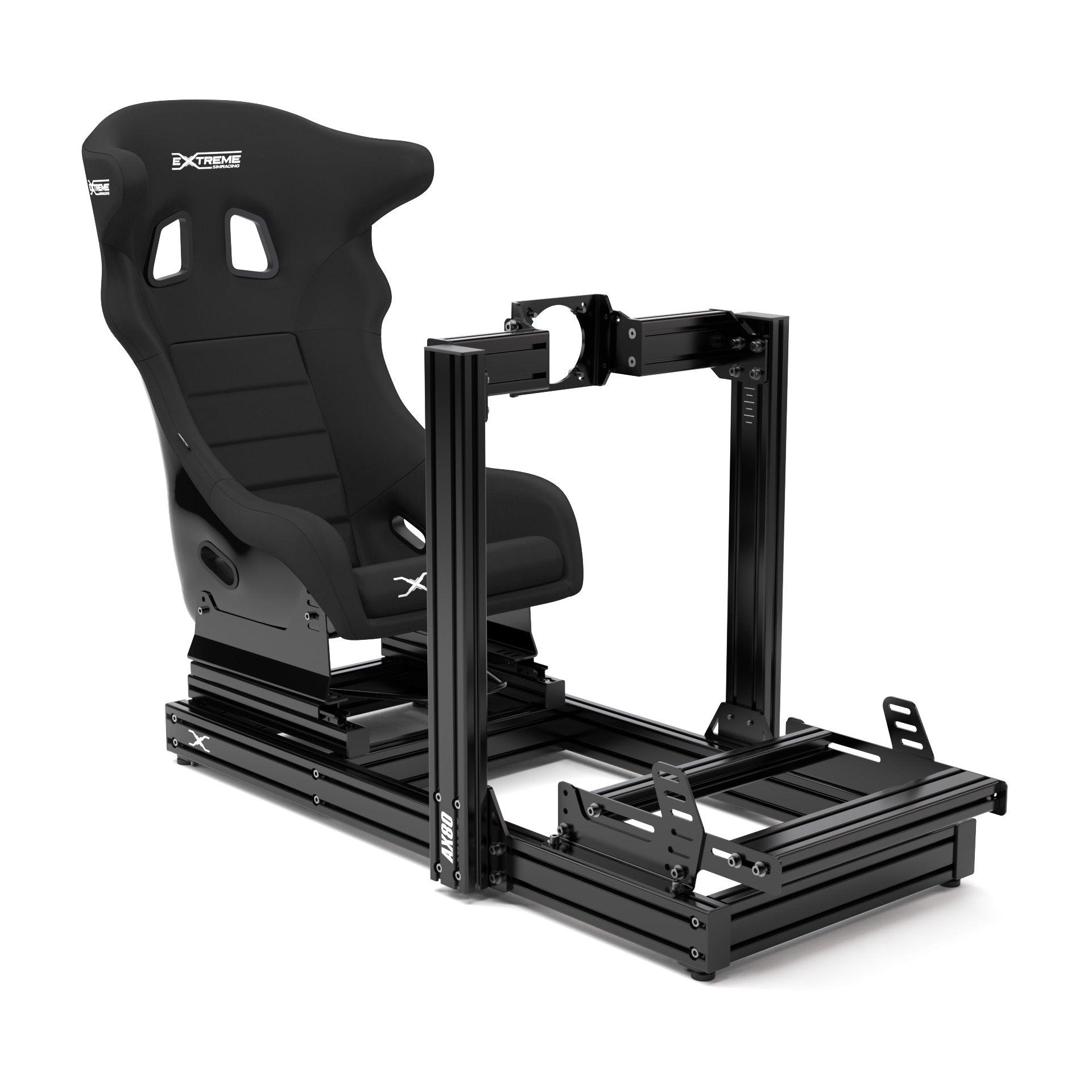

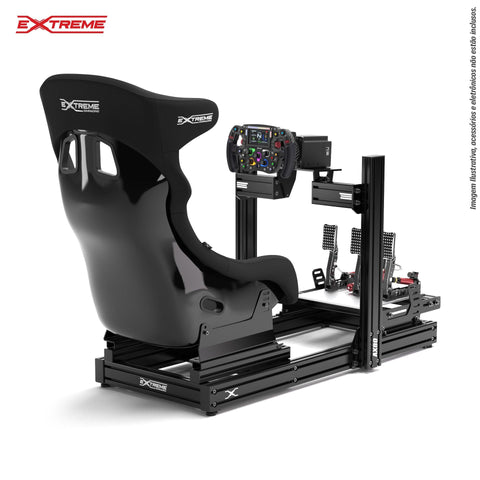

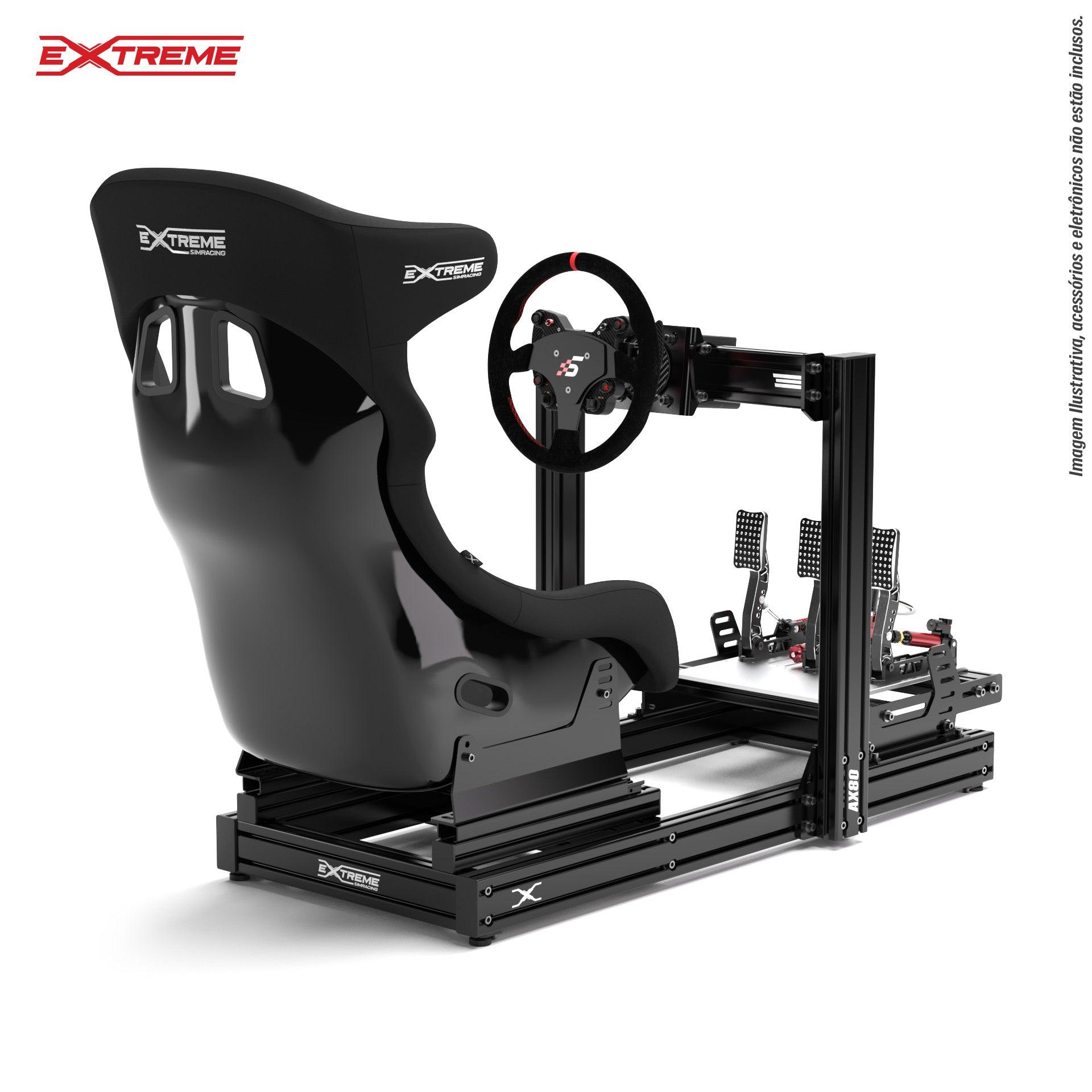

AX80 ALUMINUM PROFILE SIM RACING RIG

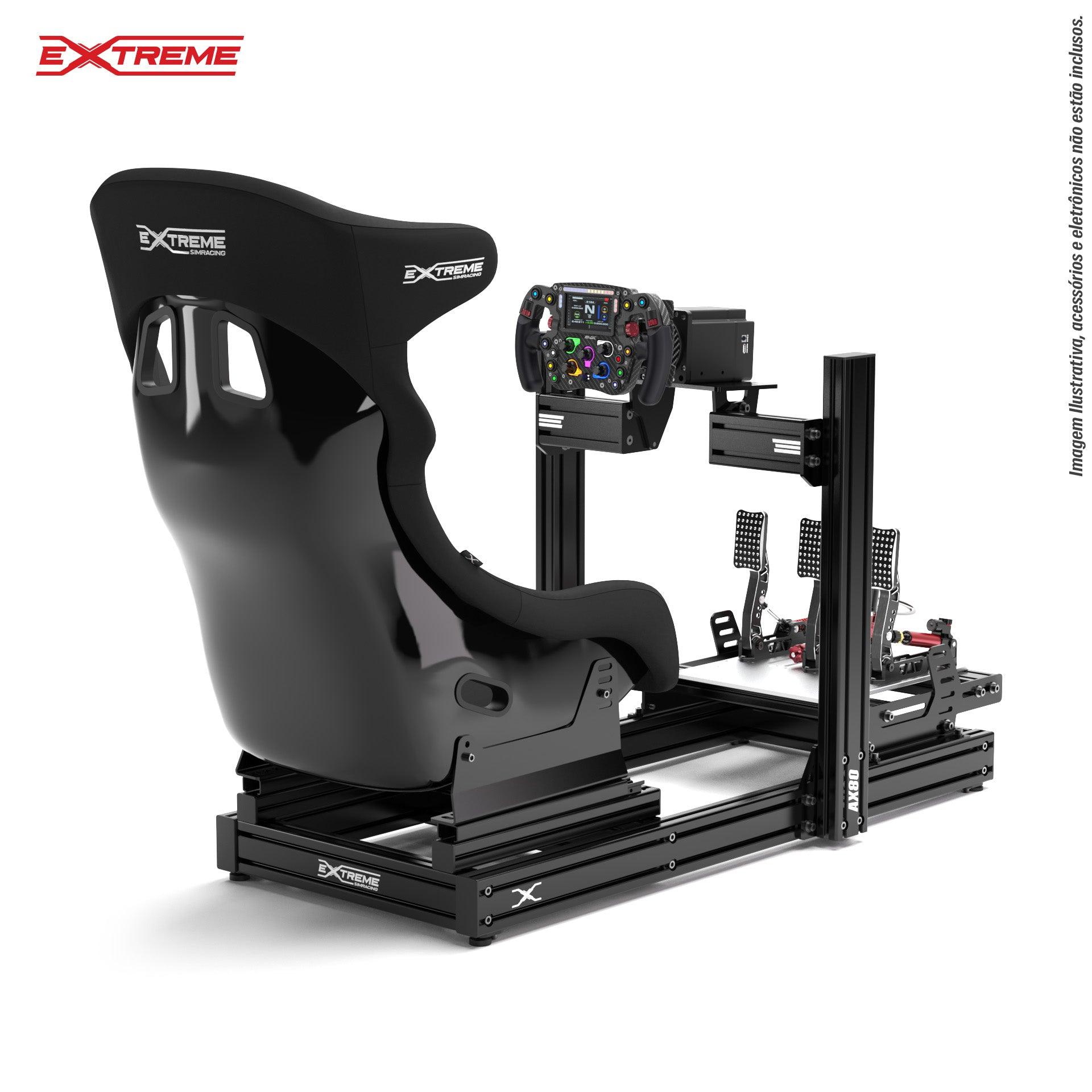

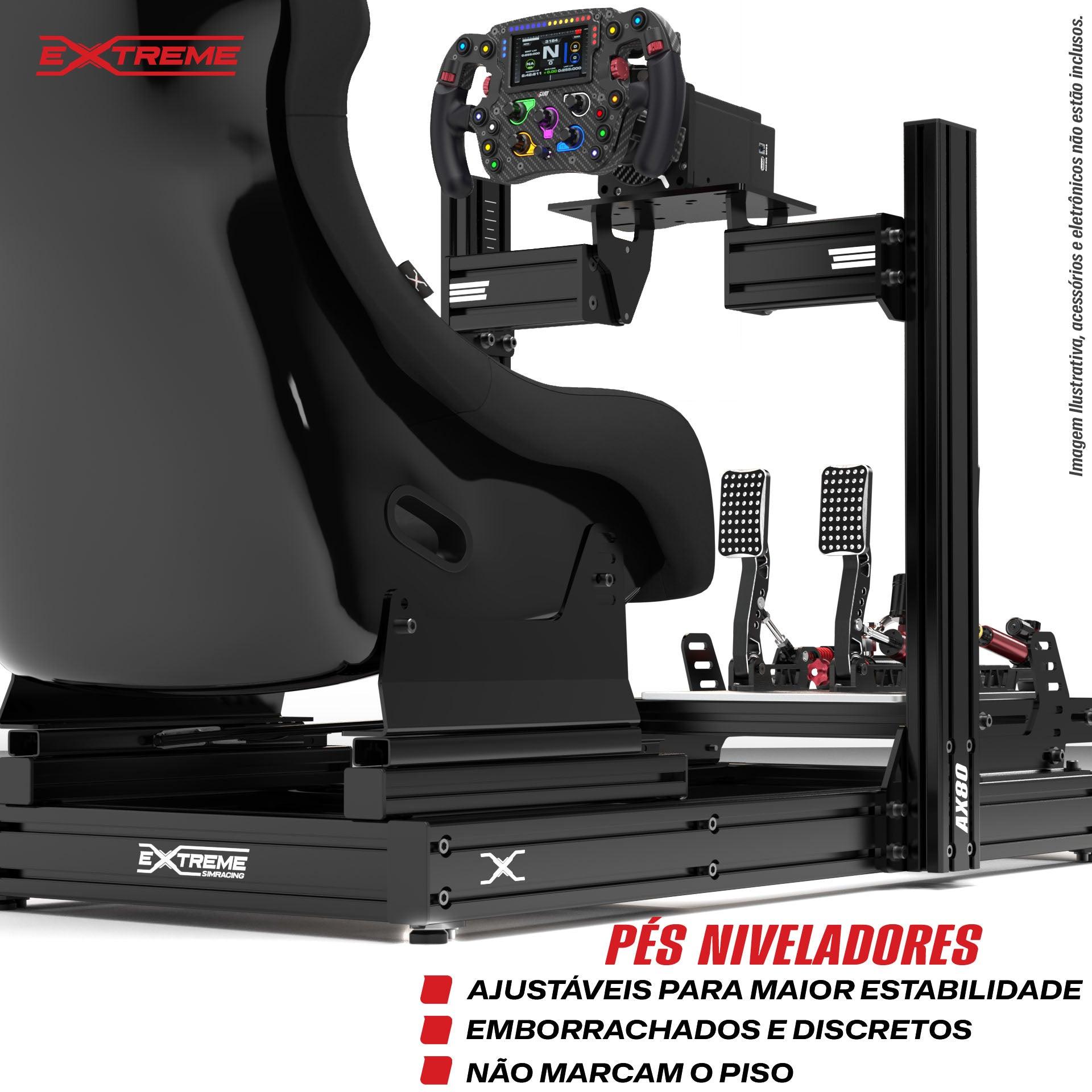

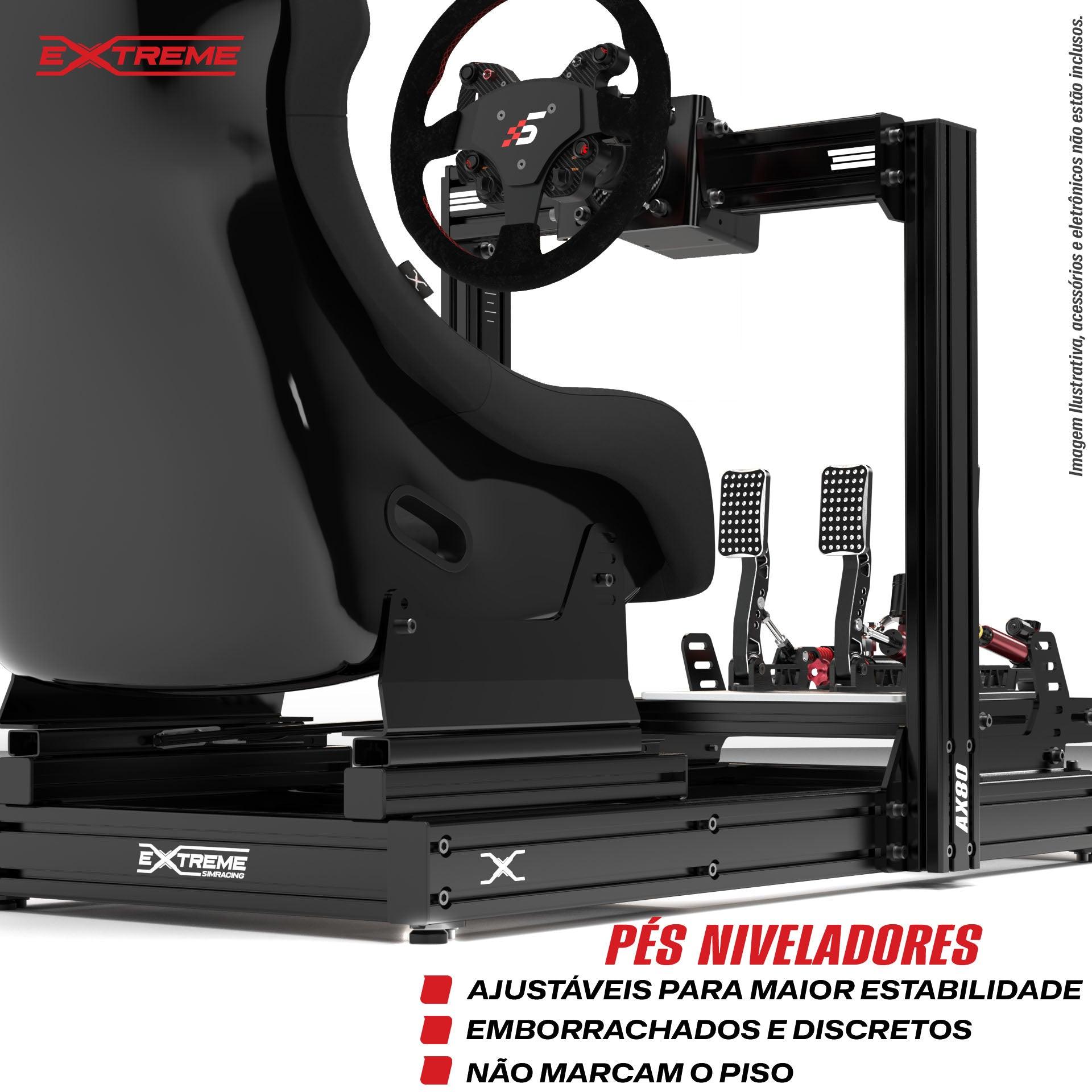

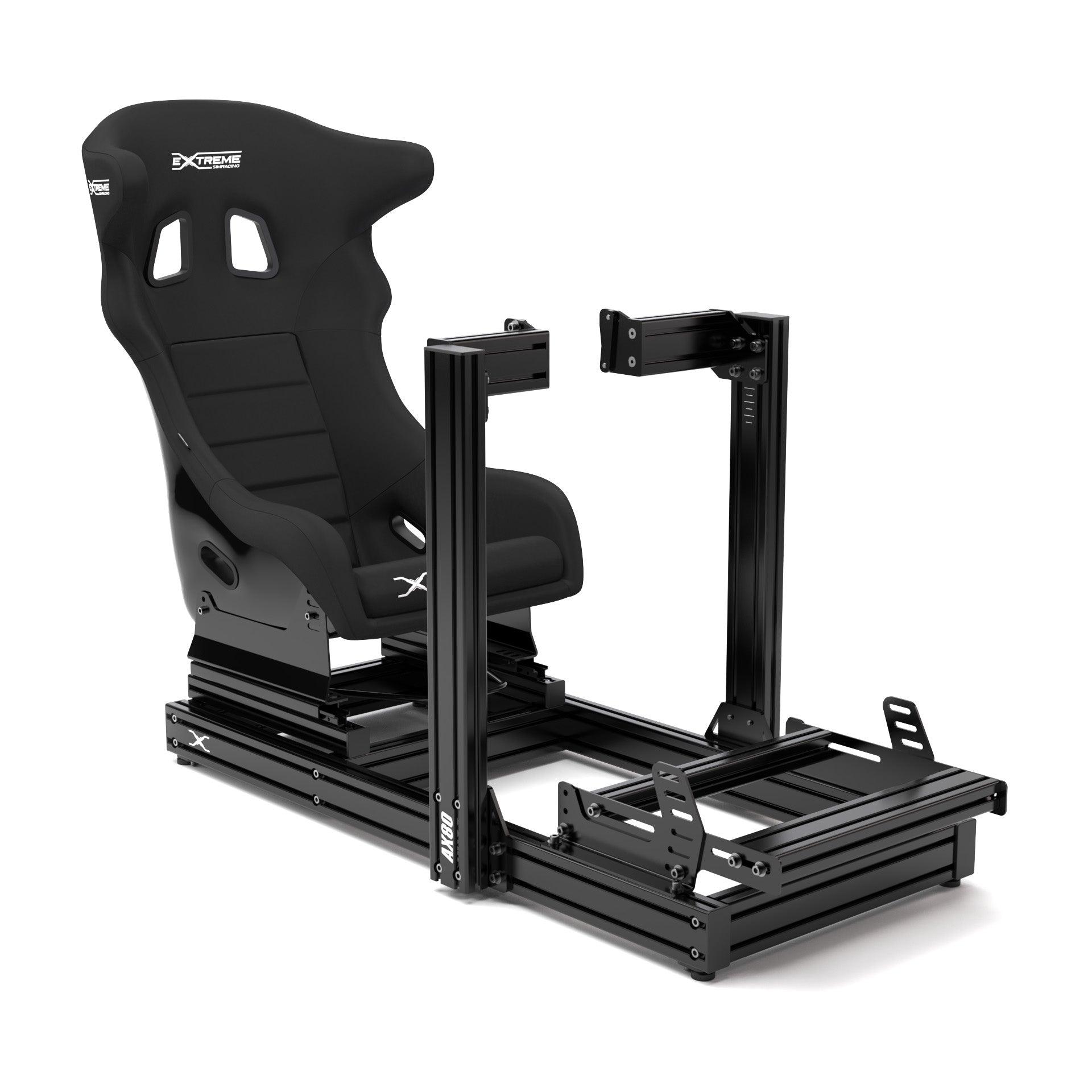

The AX80 Racing Chassis from Extreme Simracing offers a high-performance solution for serious sim racers. Built with professional and competitive racing needs in mind, this chassis is constructed using 80mm x 40mm aluminum profiles and 6mm reinforced carbon steel plates to provide superior rigidity and durability.

The focus on maximum rigidity ensures that the chassis can handle the demands of Direct Drive wheels and load cell pedals, making it a great choice for sim racers who require top-level performance. The machined holes in the aluminum profiles allow for total locking of the chassis, ensuring stability and secure positioning during even the most intense racing sessions.

The AX80's compatibility with a seat further enhances its appeal, offering a comprehensive and integrated setup for sim racers. The chassis not only delivers in terms of rigidity and stability but also creates an immersive racing experience, capable of withstanding the force feedback and demands of competitive racing.

For those looking for a robust, adjustable, and customizable chassis that supports professional-grade equipment, the AX80 provides all the necessary features and more.

PRODUCT FEATURES

Carbon Steel Steering Wheel Plate:
✔️ Material: Carbon steel
✔️ Design: Lateral and front bending forming a rigid frame
✔️ Torsion: Zero torsion — ensures minimal flex during intense Force Feedback (FFB)
✔️ Compatibility: Supports Direct Drive wheels with up to 32Nm of FFB

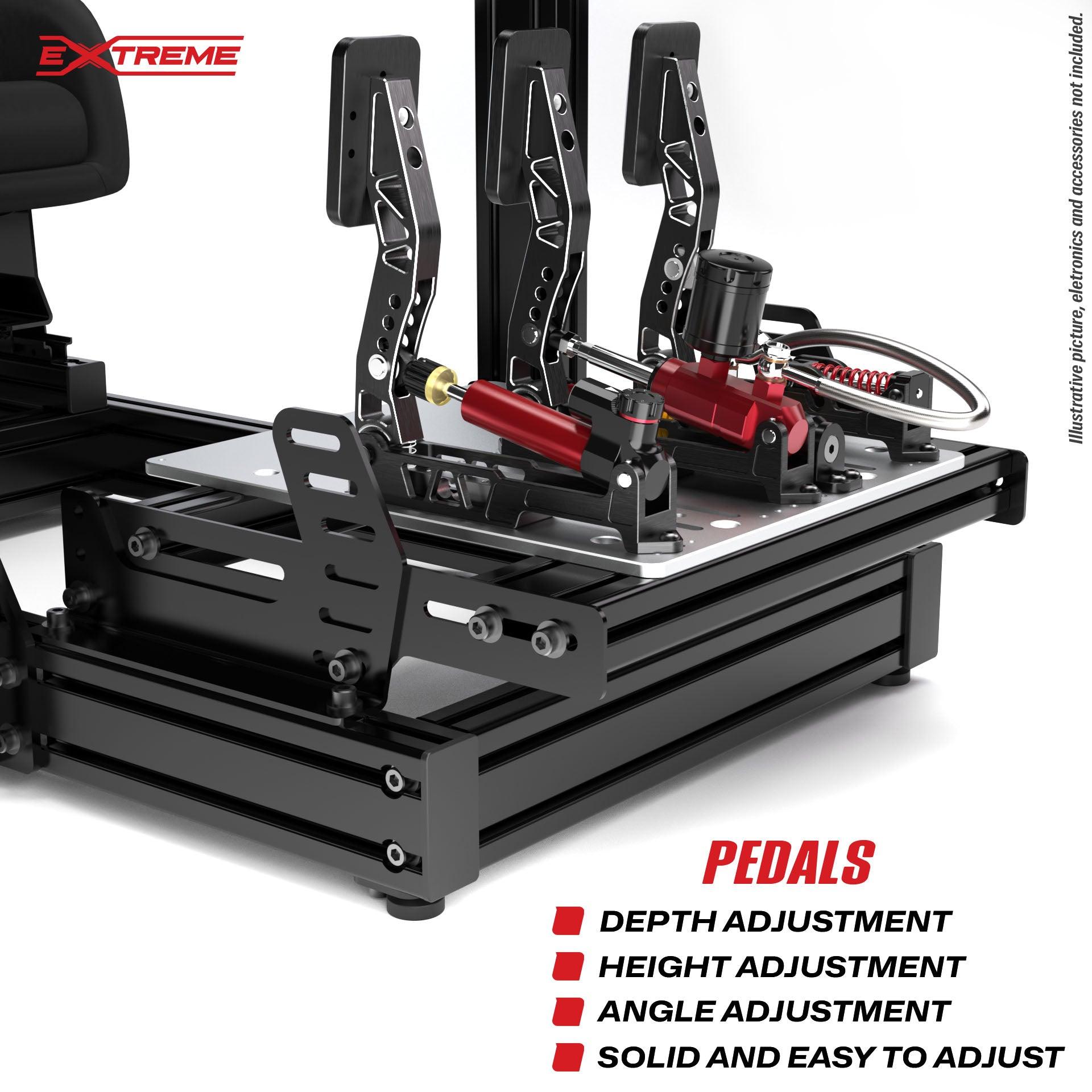

Aluminum Pedal Base:
✔️ Material: Aluminum profile

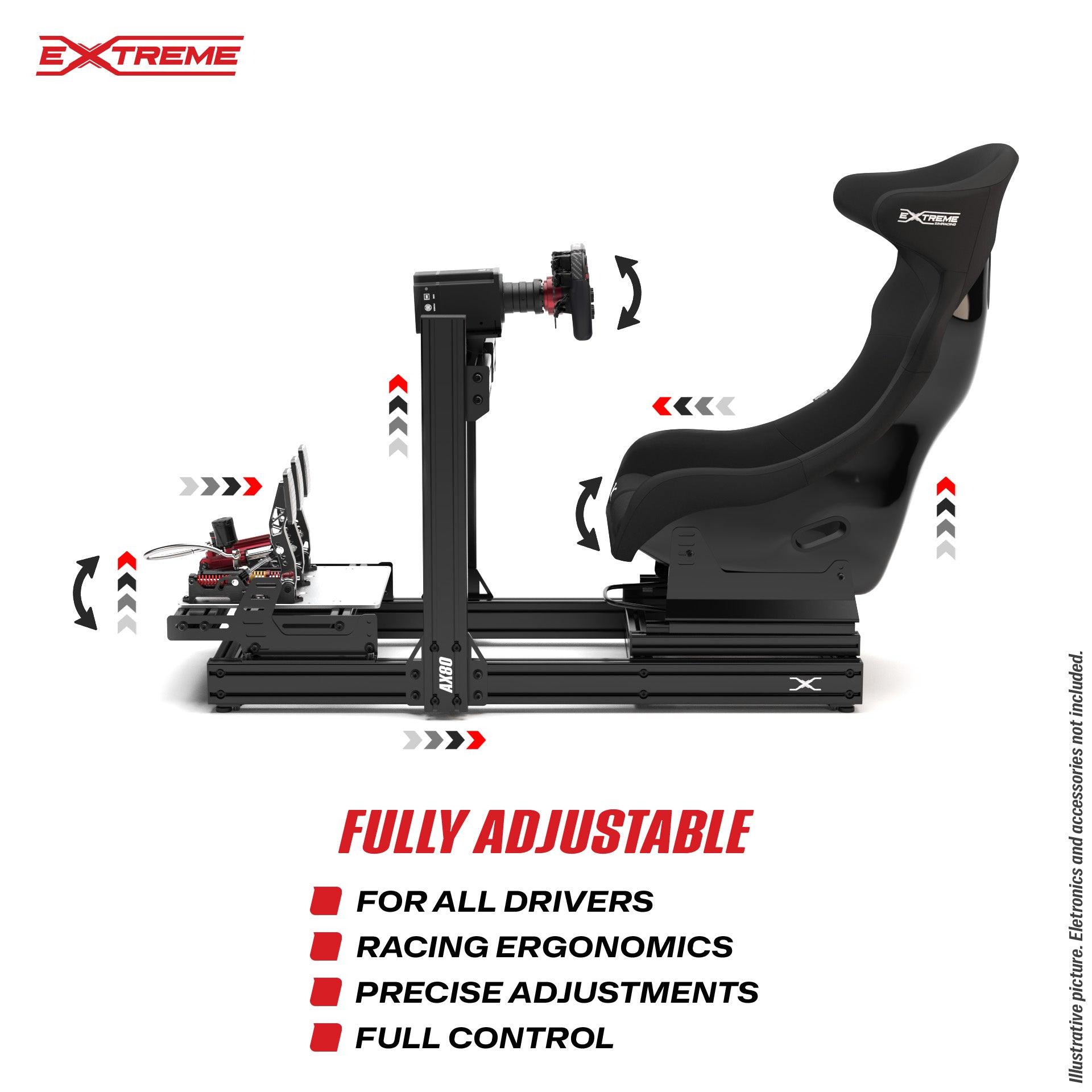

✔️ Adjustability: Inclination and depth adjustment via side plates
✔️ Brake Modulation: Rigid structure supports load cell brake modulation up to 300kg
✔️ Design: Provides a solid, realistic platform for high-performance pedal input

Optimized Rigidity:
✔️ Design: Perforated external profiles allow secure attachment using through bolts, eliminating the need for angle brackets
✔️ Strength: Clean and efficient layout enhances structural rigidity and overall stability

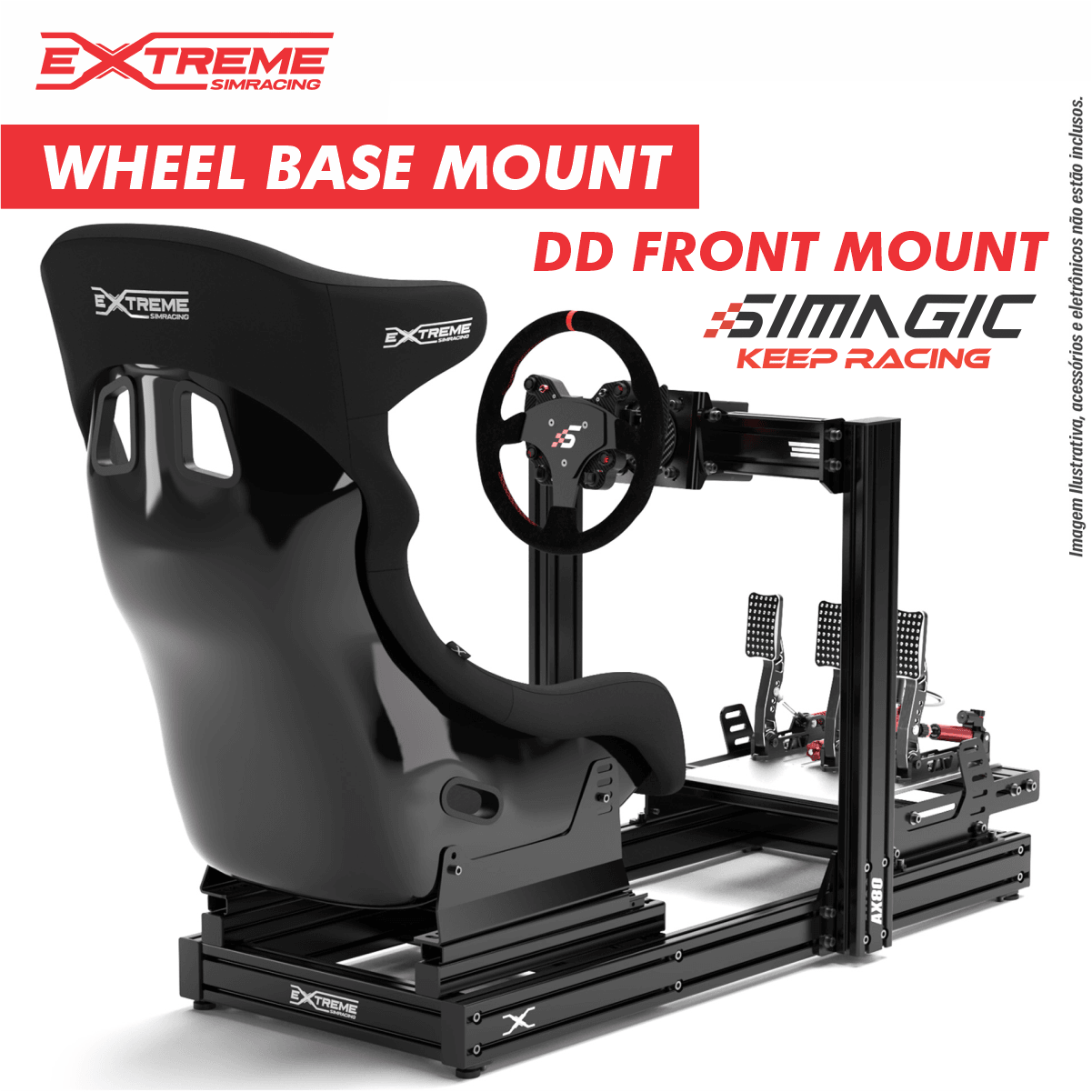

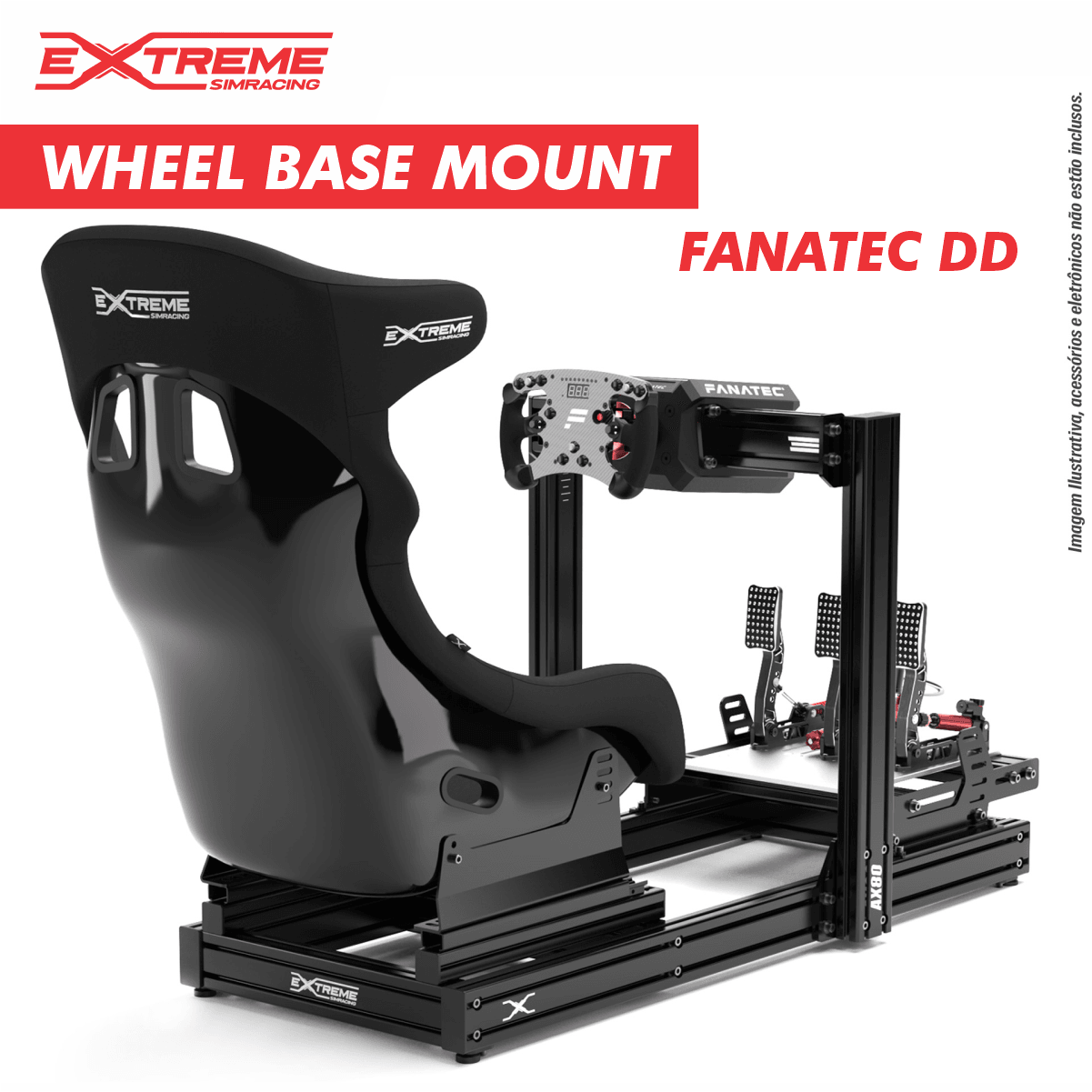

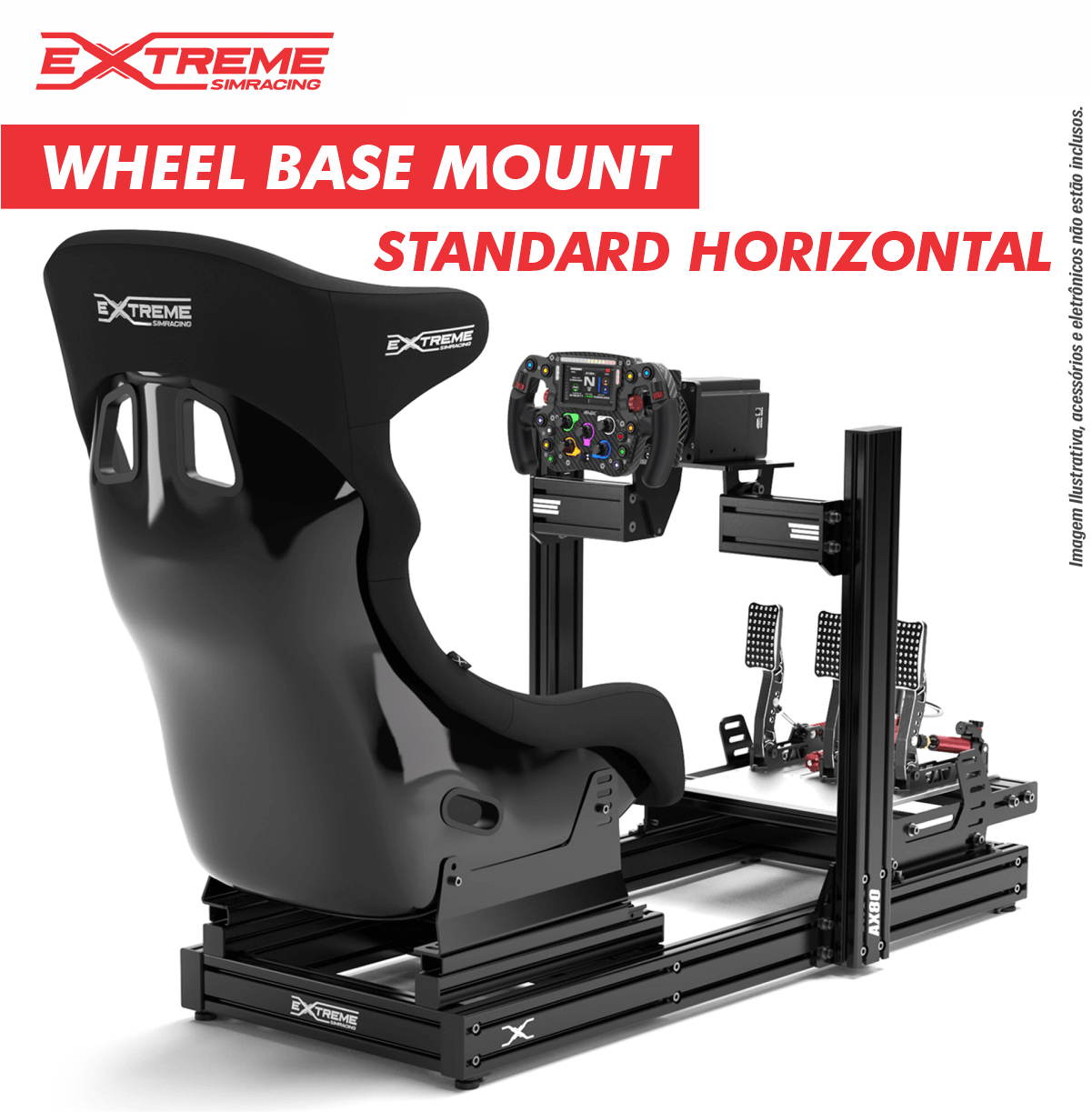

Vertical Profile Rigidity:
✔️ Design: Vertical profiles of the steering wheel base are perforated for flexible mounting options

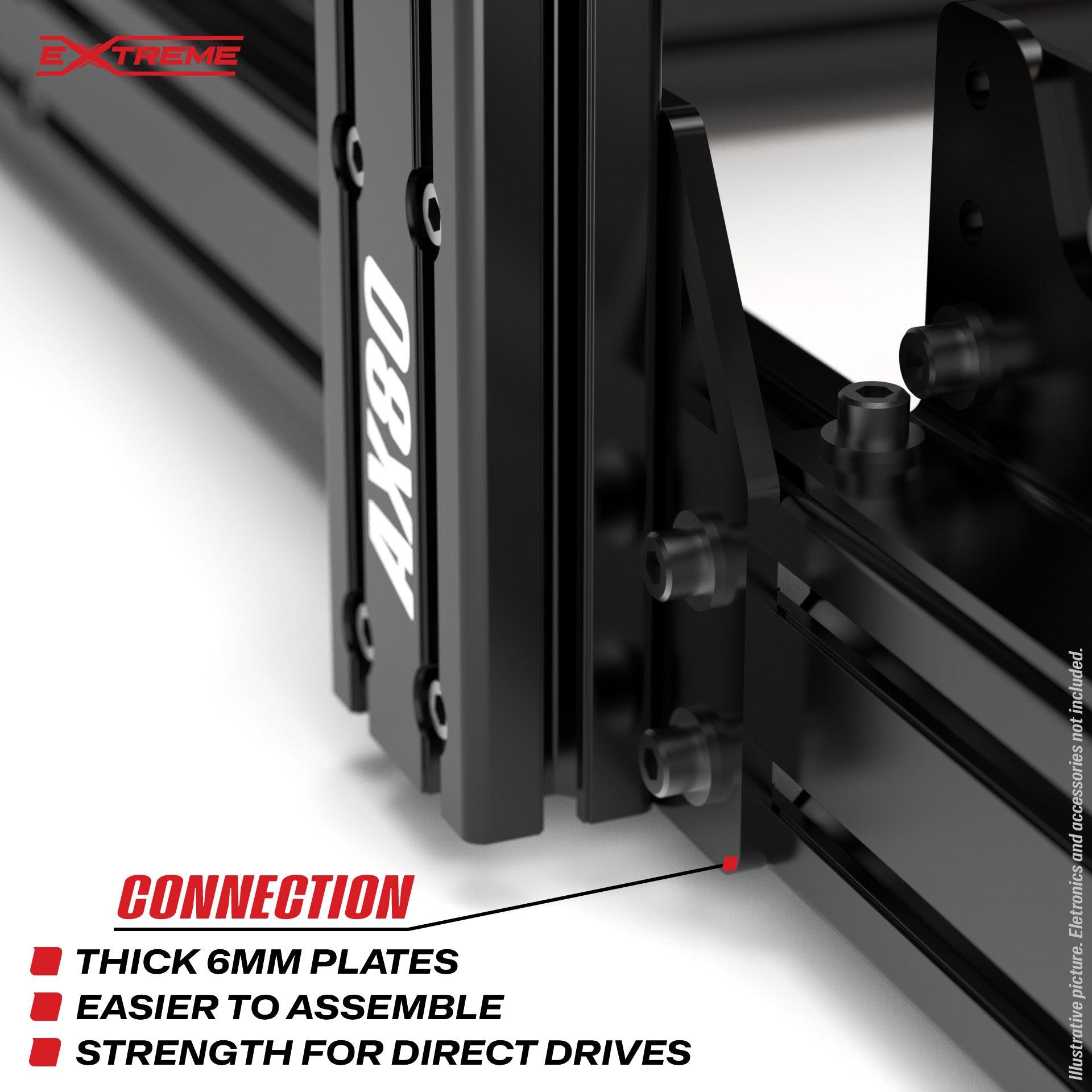

✔️ Enhanced Strength: Connected to the chassis with a 6mm steel plate in a sandwich configuration, maximizing rigidity at critical stress points

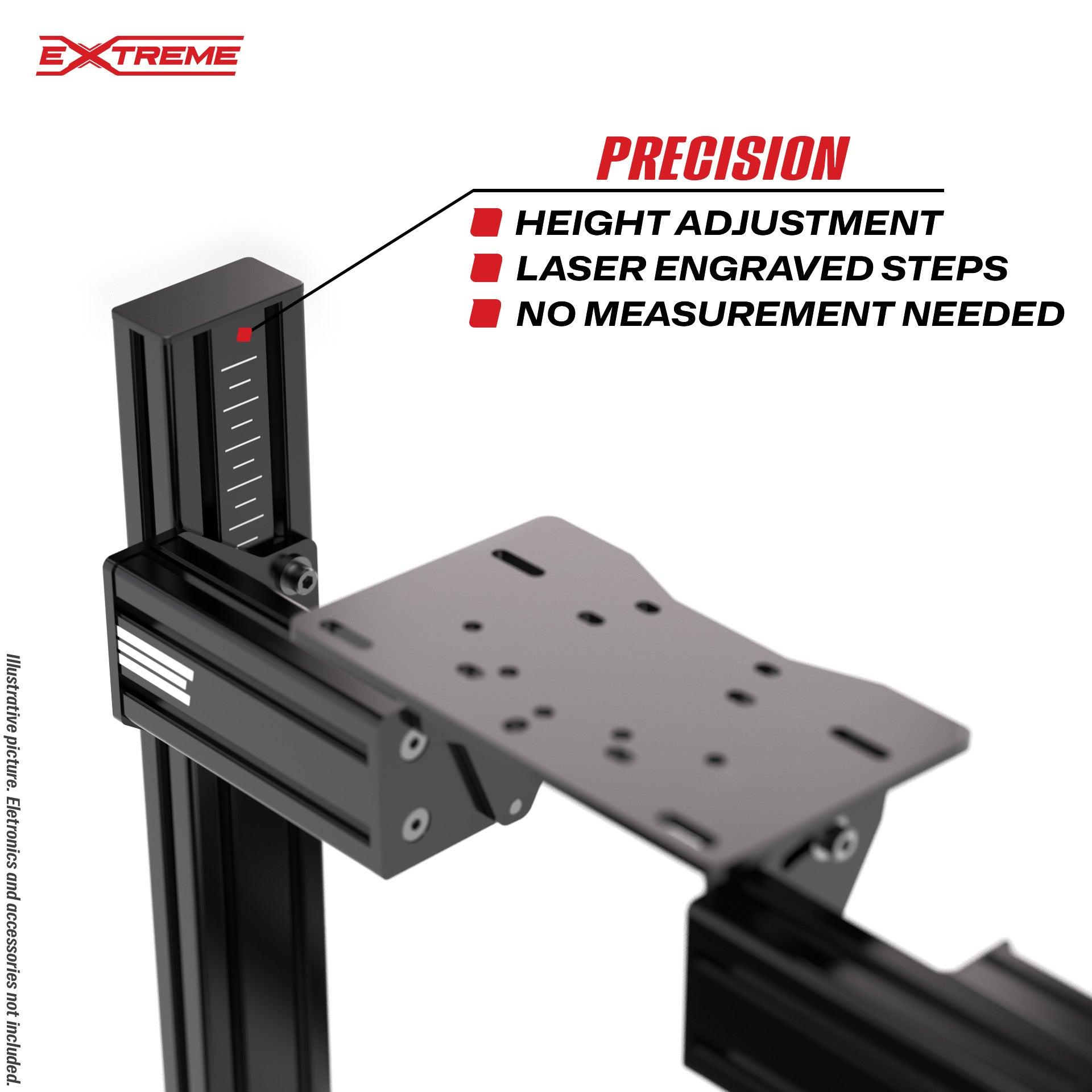

✔️ Adjustability: Horizontal plates enable precise height and angle adjustments for optimal steering wheel positioning

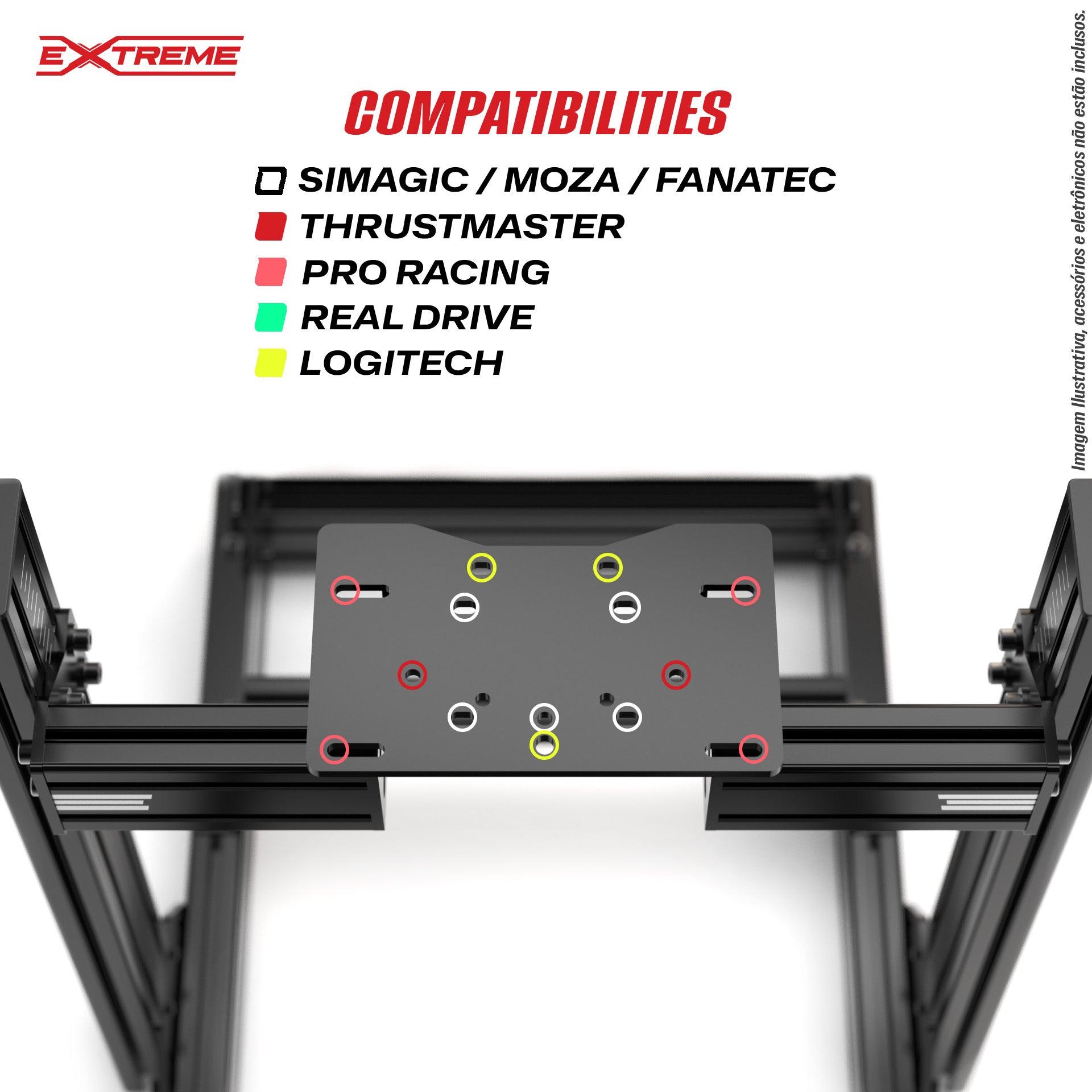

Compatibility:

SIMAGIC BASES: M10, ALPHA (15Nm), ALPHA MINI (10Nm), ALPHA U (23Nm)
PEDALS: P2000, P1000, P1000i

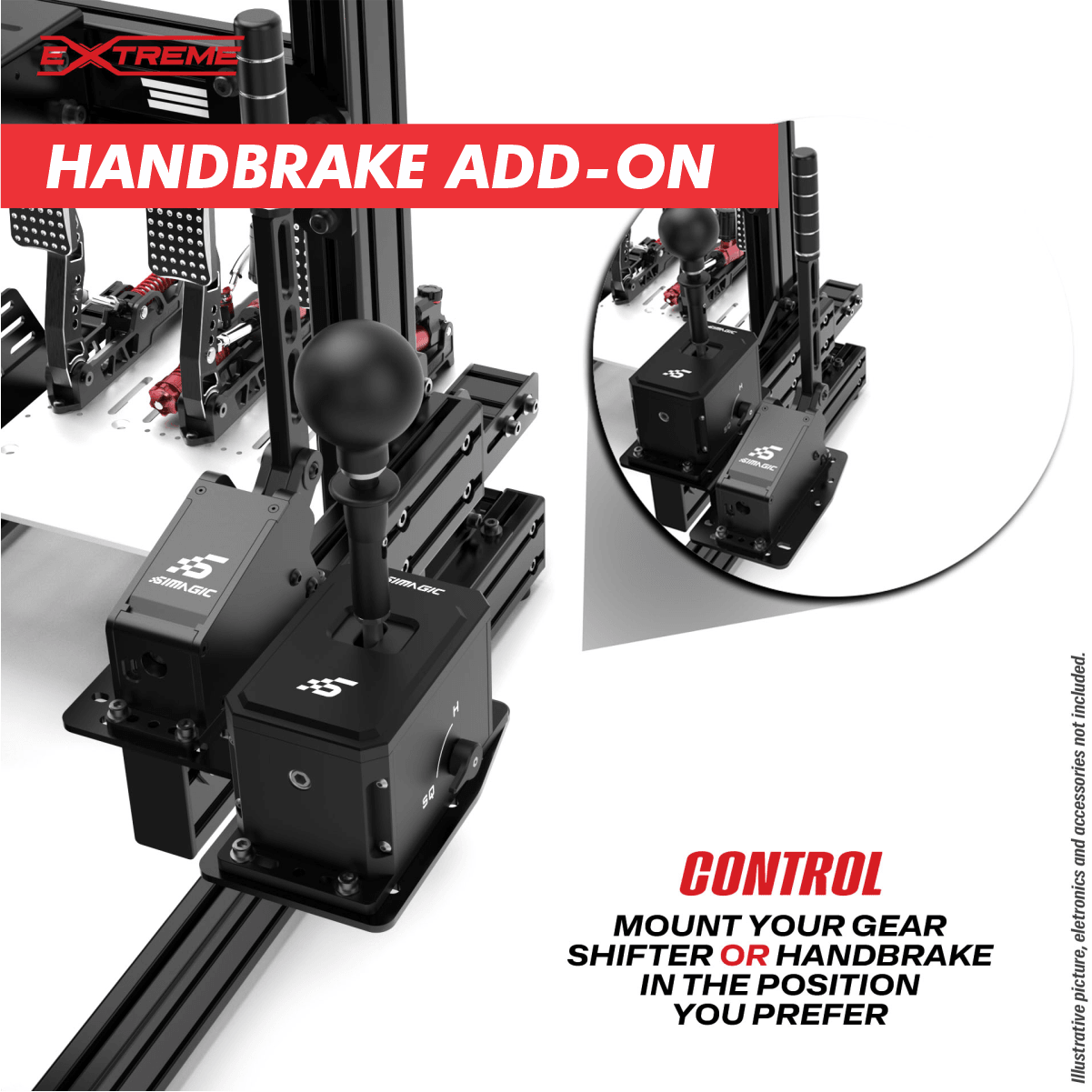

SHIFTER: Q1, Q1S, DS-8X
HANDBRAKE: TB-1

LOGITECH:
✔ Driving Force GT, G920, G25, G27, G29, G923, TP3A Pro Pedals, Logitech                    Shifters

THRUSTMASTER:
✔ T300, T500 RS, TS-PC Racer, TX-XW Racer, TX, T-GT, TH8 Shifter, TH8A Shifter

FANATEC:
✔ Clubsport V1, V2, V2.5, CSL, CSL ELITE, DD1, DD2
✔ Clubsport Pedals V1, V2, V3
✔ Clubsport Shifter

Painting and Finishing:
Design: With an anodized black finish on the aluminum profiles and laser engraving on the chassis, the AX80 stands out from most products found on the market today. All carbon steel sheets are electrostatically painted in black to increase the protection of the parts and create an exquisite finish

Seat Compatibility:
Base profiles for the Seat accommodate fixing plates (not included) with holes up to 400mm deep and 480mm wide.

WHAT'S INCLUDED:
✔ Chassis in Aluminum Profiles
✔ Base for Steering Wheel and Pedals
✔ Plates, Tools, and Screws for Assembly
✔ User Manual
