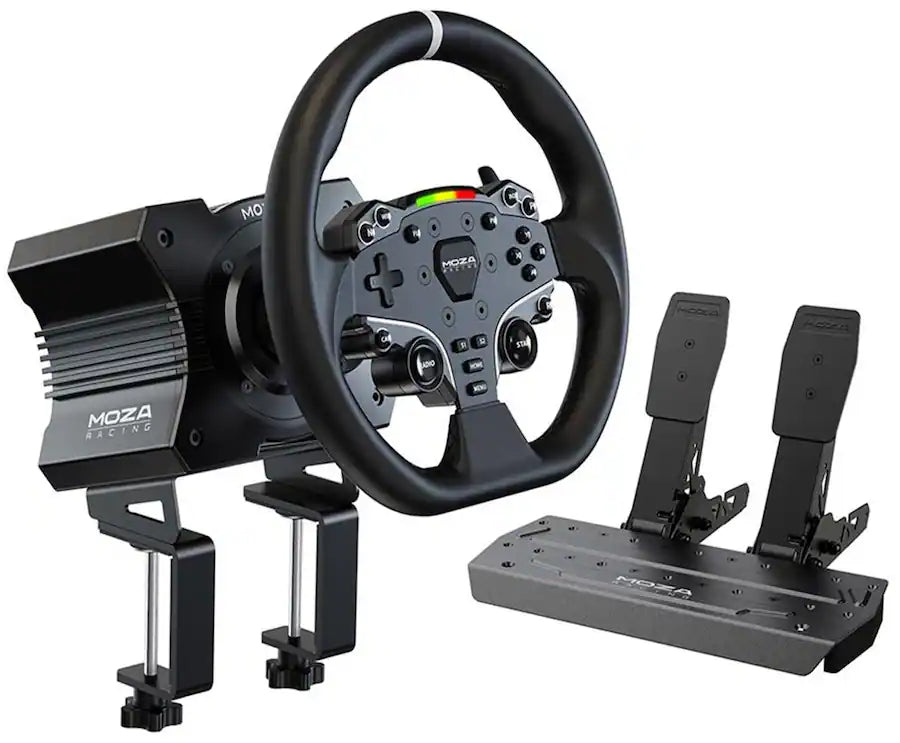

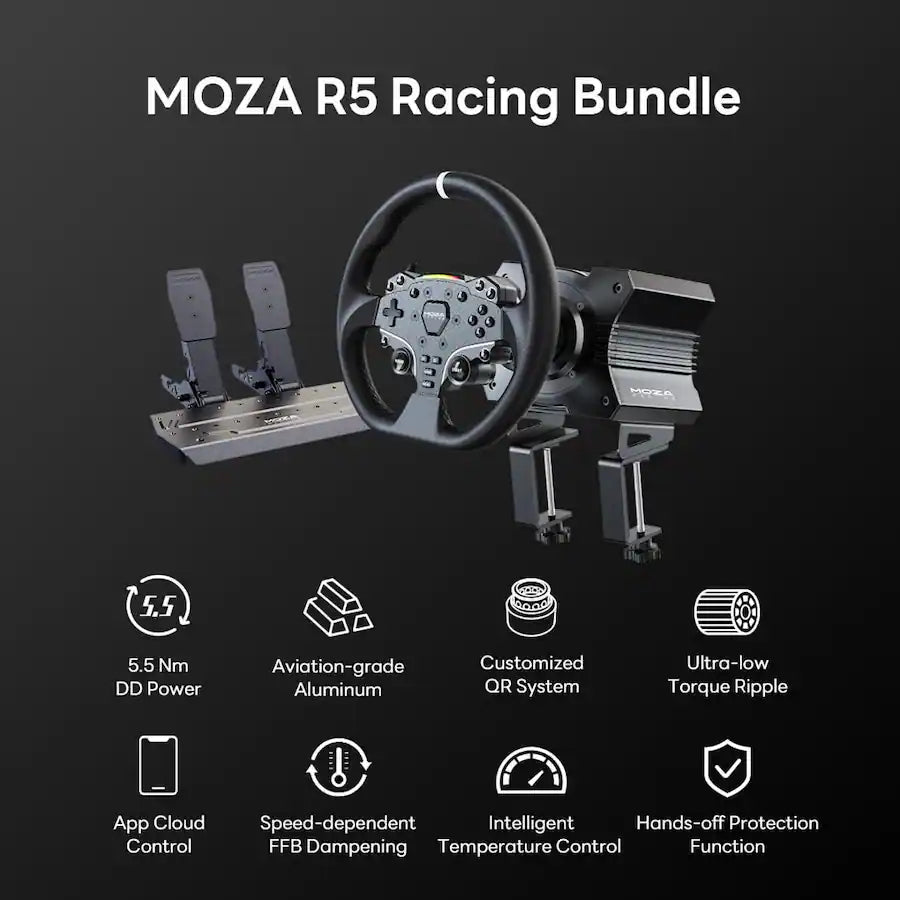

MOZA Racing R5 Bundle

Product Description

Experience next-level racing with the MOZA R5 Bundle. Featuring 5.5 Nm of direct drive torque, customizable driving modes, and a robust construction of aluminum, leather, and steel, the R5 delivers unmatched immersion and durability. The MOZA Pit House control center allows easy device monitoring, settings adjustments, and preset loading, making setup and customization simple. Elevate your sim racing setup with precision, performance, and convenience.

Product Features

5.5 Nm Direct Drive Power
Feel every nuance of the road with the punchy 5.5 Nm torque provided by MOZA’s direct drive technology.

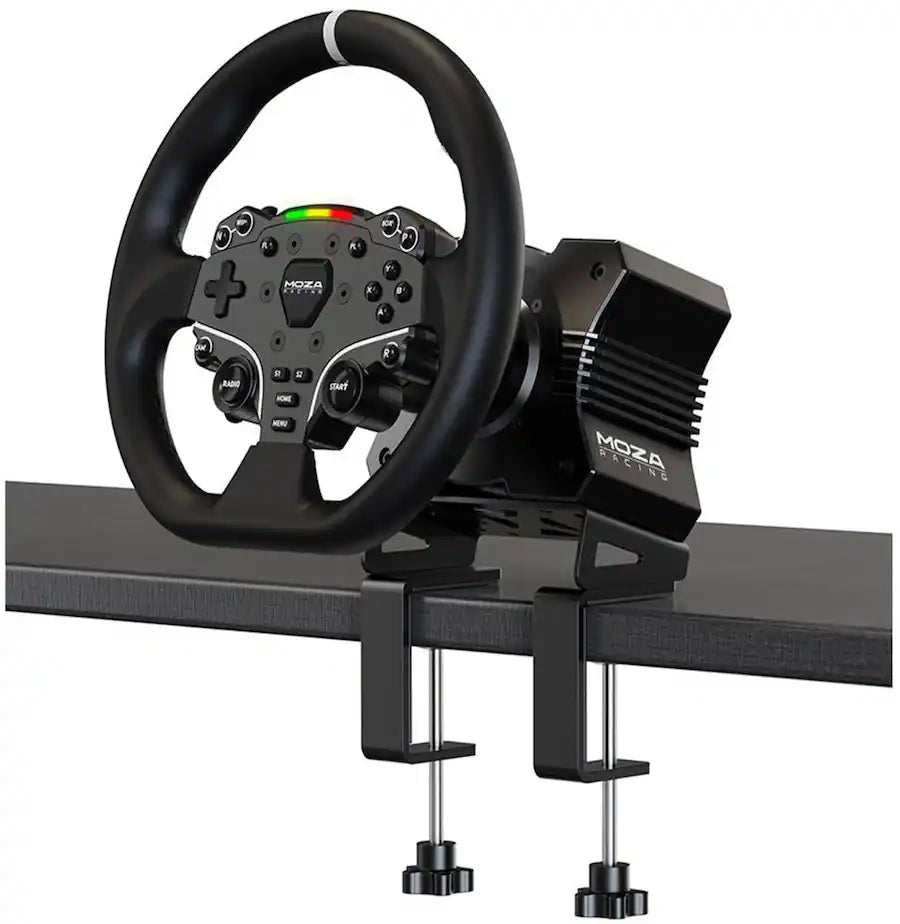

Compact Mounting
The included R5 table clamp allows easy installation on desks or tables, making it ideal for limited spaces.

MOZA Pit House Control Center
Monitor device status, tweak settings, and load presets effortlessly for a seamless racing experience.

One-Click Driving Modes
Choose from pre-configured modes like GT, Formula, Rally, Drifting, Karting, and Performance Car for instant immersion.

Realistic Feedback
Experience various driving styles and sensations with precise force feedback, simulating different road and vehicle conditions.

Custom Settings
Create and save personalized setups to match your racing style for maximum control and comfort.

Easy Firmware Upgrades
Update all connected devices with a single click through the MOZA Pit House for a fully integrated ecosystem.

Product Specifications

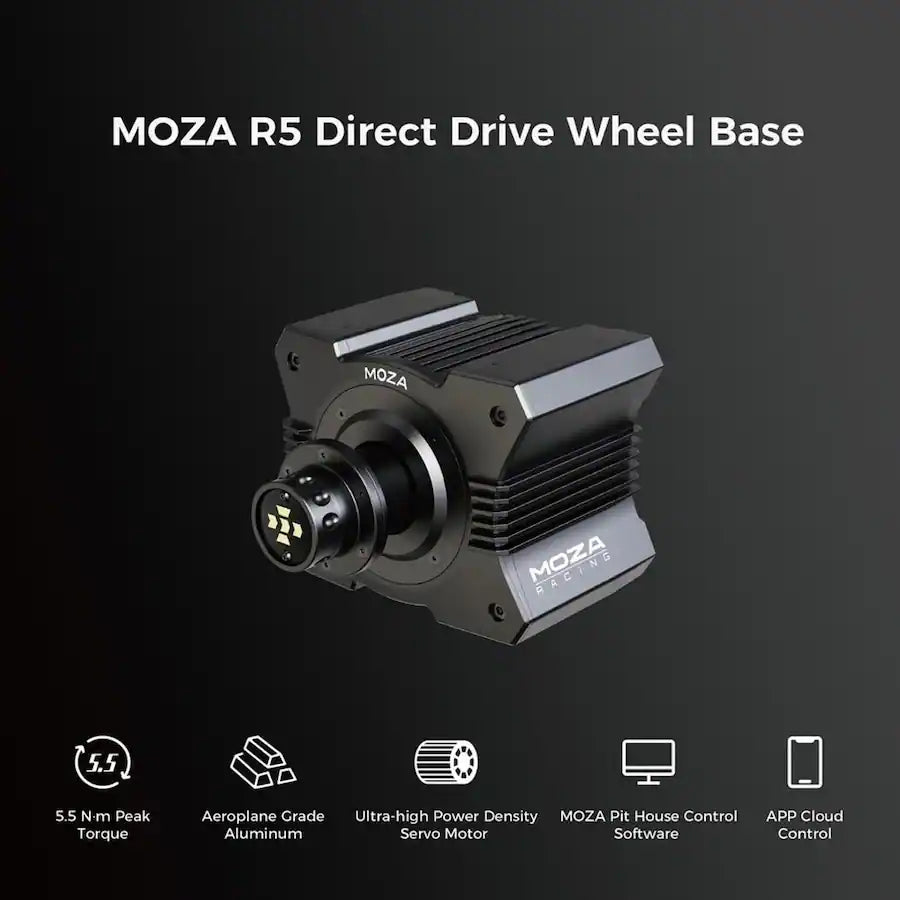

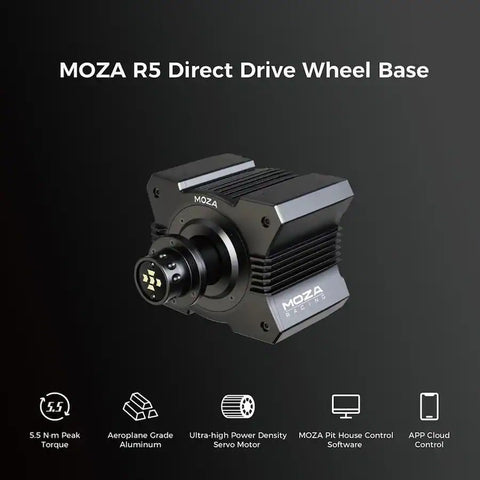

Direct Drive R5 Base

• Platform: PC

• Force Feedback System: Direct Drive

• Max Steering Angle: Infinite Rotation

• Housing Material: Aviation-grade Aluminum Alloy

• Color: Black

• Peak Torque: 5.5 Nm

• USB Refresh Rate: 1000Hz

• Input Voltage: 110V–220V AC → 12V DC

• Encoder Resolution: 15-bit

• App Functions: Supported via MOZA Pit House

• Quick Release: Supported

• Interface: Power, Data, Display, Pedals, Wheel Input

• Accessories Included: User manual, Warranty card, Power supply, USB cable, Toolkit

• Mounting Method: 4 holes on the bottom

• Desktop Mounting Clip: Standard

• Online Firmware Upgrade: Supported

• Emergency Stop Switch: Optional

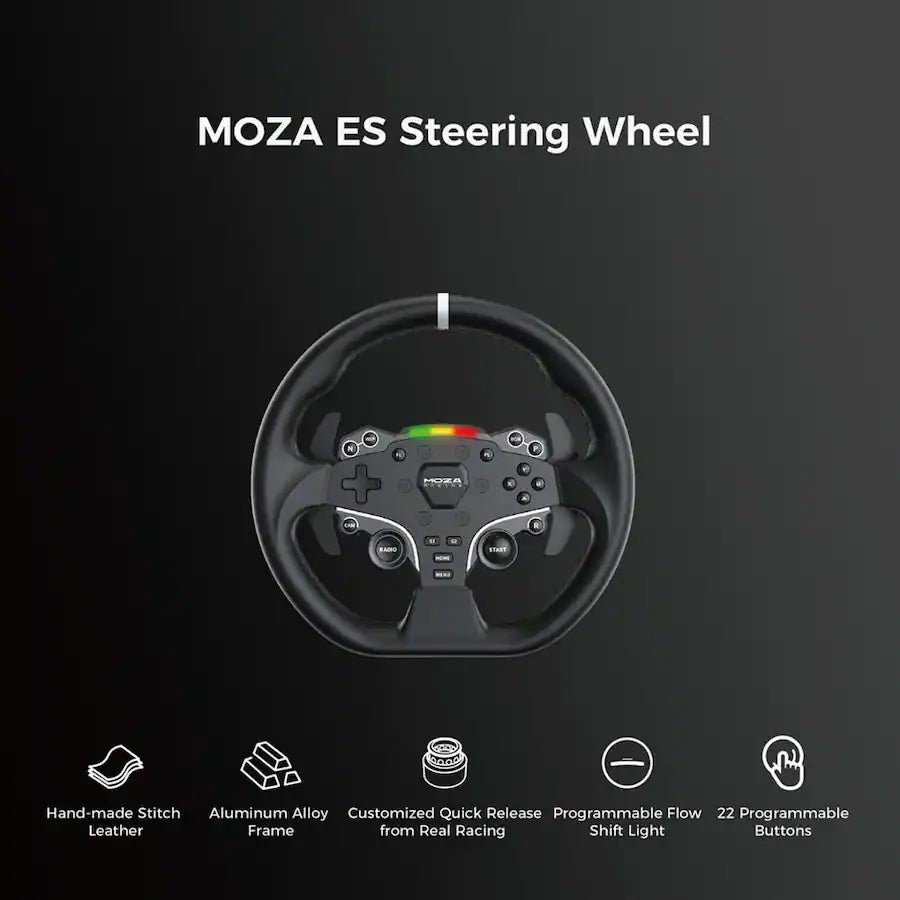

ES Steering Wheel

• Wheel Material: Microfiber Leather

• Frame & Front Plate Material: Aluminum Alloy

• Dial Material: Aluminum Alloy

• Size: 11 inches

• Buttons: 22 programmable

• LED Lamp Beads: 10

• Intelligent Telemetry: Supported

• Configurable LEDs (MOZA Pit House): Supported

• Disassembly Method: Quick Release System

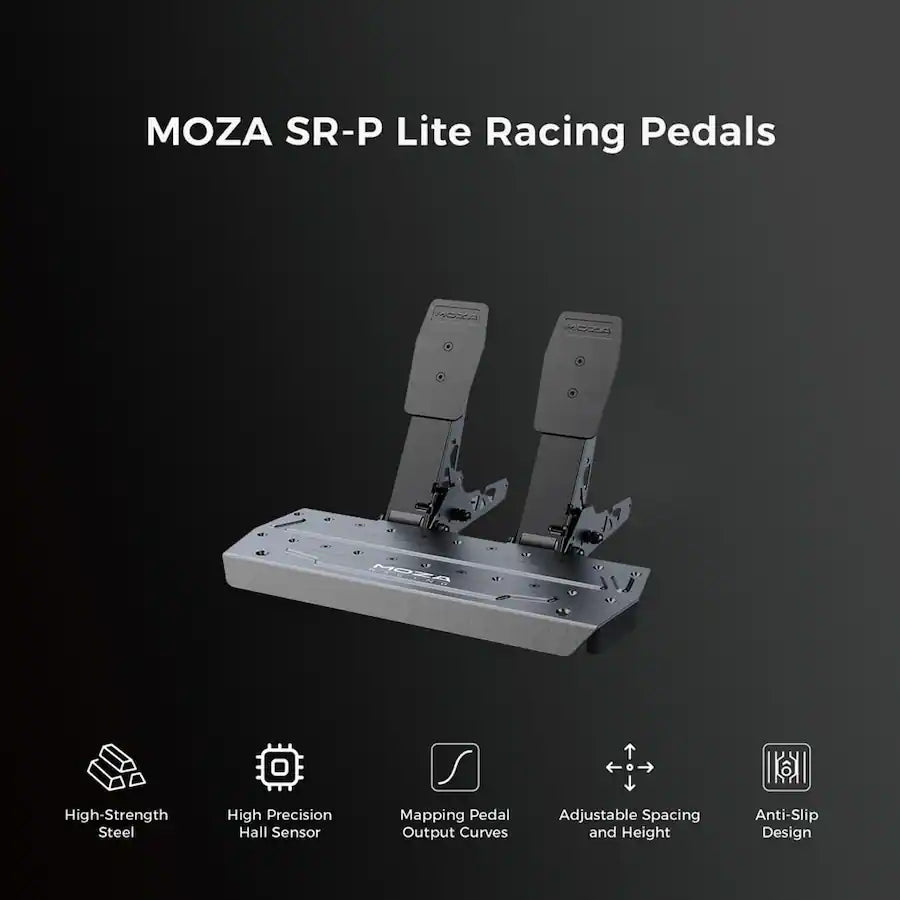

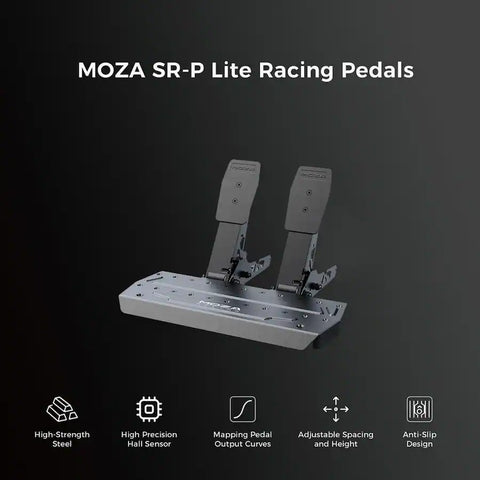

SR-P Lite Pedals

• Material: High-strength Steel

• Plate Material: High-strength Steel

• Color: Black

• Pedal Sensor Type: Hall Sensor

• Pedal Spacing: Adjustable

• Pedal Plate Height: Adjustable

• Pedal Input Adjustment: Supported

• Pedal Input Reversal: Supported

• Pedal Output Curve Adjustment: Supported

• Anti-Slip Pad: Included

Dimensions

17in x 17in x 11in

Weight

28.22lb

Warranty Information

Main Body: 24 Months

Power Supply: 24 Months

Cable: 6 Months

Accessories: Not Applicable
